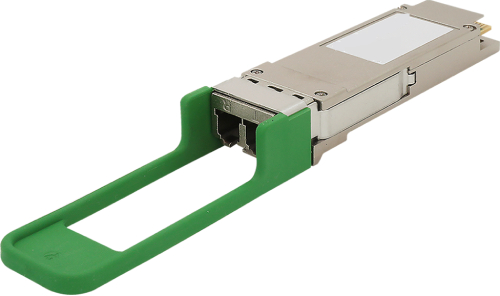

200G QSFP56
Feature
☆ Hot- pluggable QSFP56 Package
☆ 4-chanle full duplex Transmitter-Receiver，LC connector
☆ 4-chanle cooled LAN-WDM EML Transmitter & APD ROSA
☆ Compliance with QSFP56 MSA & IEEE 802.3cn 200GBASE-ER4 Ethernet
☆ digital diagnostic monitoring
☆ 12W Power consumption
☆ Single +3.3V power supply
☆ Operating temperature :0~70℃
☆ Compliance with CMIS V4.0
☆ compliant with Rohs
Applications
☆ 200G Ethernet
☆ 5G middle/back-haul application
☆ Data Centers
☆ Other optical Link
|
P/N |
Data Rate |
Interface |
Distance |
wavelength |
Tx Optics |
Rx Optics |
Datasheet |
||
|
Laser |
Tx power |
Detector |
Rx Sens. |
||||||
|
ET-Q56SR42CDM01
|
200G
|
MPO
|
100m
|
850nm
|
VCSEL
|
-6.5~4dBm
|
PIN
|
<-8.4dBm
|
1
|
|
ET-Q56FR42CDL2
|
200G
|
LC
|
2km
|
CWDM4
|
EML
|
-4.2~4.7dBm
|
PIN
|
<-8.2dBm
|
1
|
|
ET-Q56LR42CDL10
|
200G
|
LC
|
10km
|
LWDM4
|
EML CWDM4 |
-3.3~5.3dBm
|
PIN
|
<-7.7dBm
|
1
|
|
ET-Q56ER42CDL40
|
200G
|
LC
|
4km
|
LWDM4
|
EML CWDM4
|
0~6.5dBm
|
APD
|
<-15.5dBm
|
1
|
